Operators of the Richmond Terminal are familiar with the fascia mounted control panels used to indicate turnout status and control same.
The mix of control panel circuit board layouts that I used over the years has been a bit of a logistical and training challenge; one of the early designs that was used was missing mounting holes. (Whoops)
I went ahead and did a redesign on these, and when I had them remade, I chose a white solder mask to make them standout better against the black fascia.

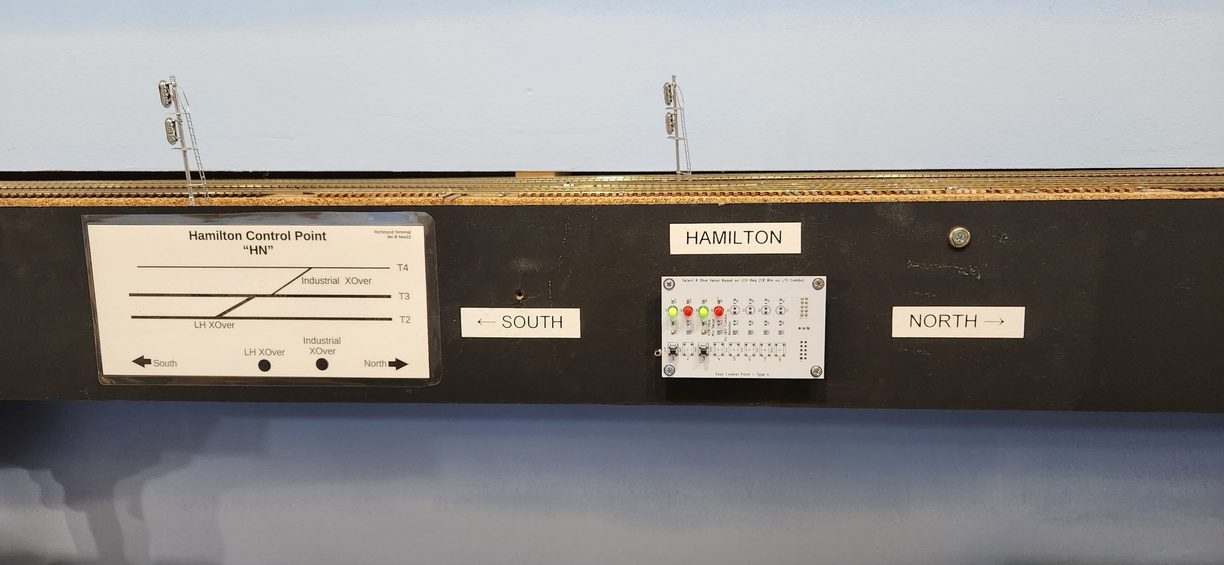

Old and new at Hamilton.
